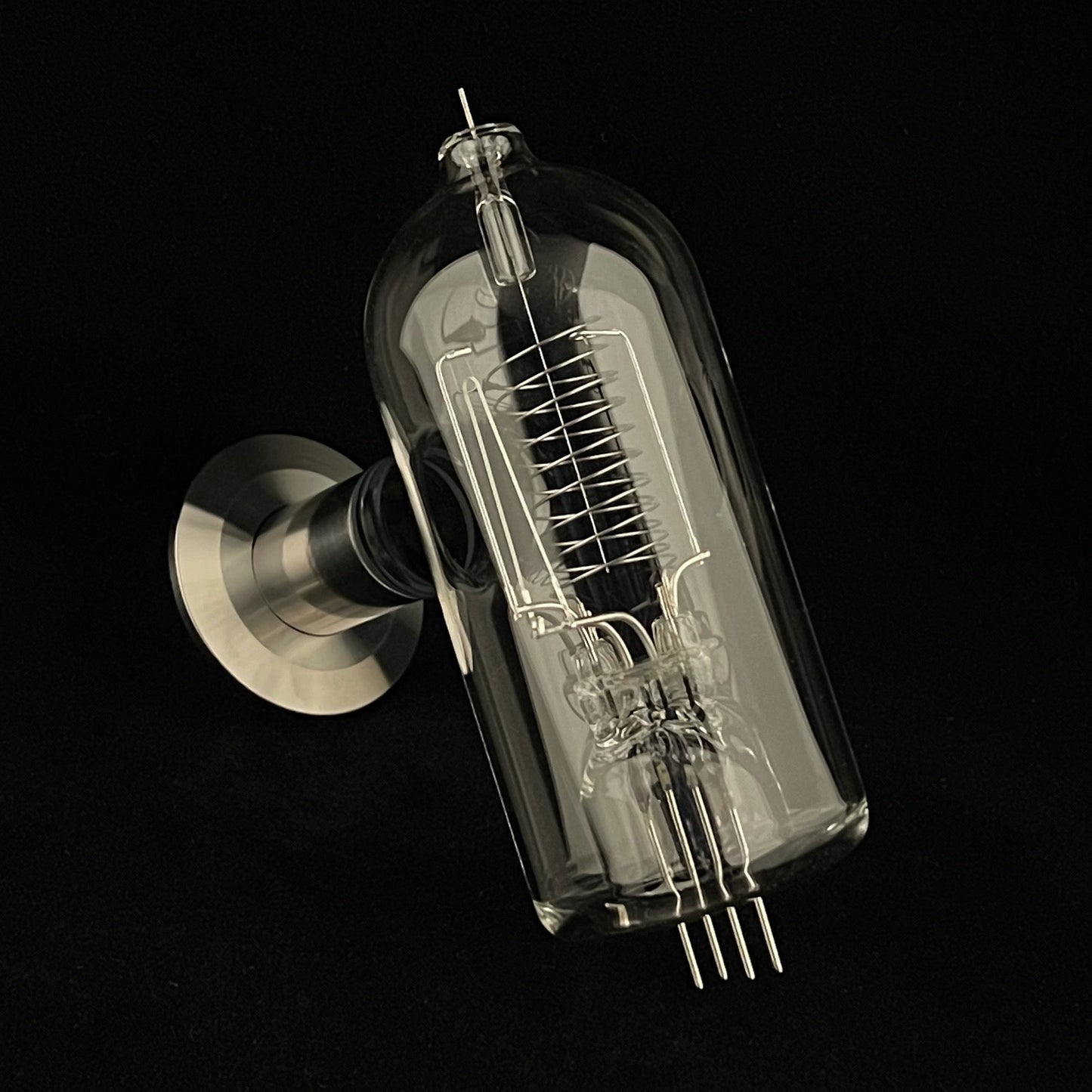

Drop-In Replacements for Varian / Agilent's Part Number: K2471311 Vacuum Gauges
Drop-In Replacements for Varian / Agilent's Part Number: K2471311 Vacuum Gauges
Regular price
$263.00 USD
Regular price
Sale price
$263.00 USD
Unit price
/
per
Seamless Drop-In Replacement for Varian / Agilent's Part Number: K2471311 Vacuum Gauge
Key Technical Specifications:
- Sensor Type: Bayard-Alpert Hot Cathode
- Measurement Range: 1.0 x 10^-9 to 0.001 Torr
- Fitting Type: 1.00 in Metal(Kovar) Inlet Port w/ a NW40 Flange
- Filament: Single Yttria coated Hair-Pin Iridium Filament
- Collector: Tungsten, 0.010 in. diameter
- Accuracy: ±20% (typical)
- Bake Out Temperature: 450°C
- Installation Orientation: Any, Vertical preferred
- Envelope: Borosilicate glass
- Grid: Tungsten
- Sensitivity: 10/Torr
- X-ray Limit: 3 x 10^-10 Torr (approximate)
- Electron Bombardment Degas: 100 Watts maximum
- Resistance Heated Degas: 6.3 to 7.5 VAC at 10 Amps (l2R)
- Filament Voltage Potential: +30 VDC
- Collector Potential: 0 V
- Grid Potential: +180 VDC
- Filament Heating Current: 4 - 6 Amps
- Filament Heating Voltage: 3 - 5 V
Upgrade durability and reliability in vacuum applications with our Vacuum Gauge. Crafted with a borosilicate glass envelope, 1.00 in. Metal(Kovar) inlet port w/ a NW40 Flange, ensuring robust performance. The upgraded Yttria-coated filament, replacing thorium coatings, prioritizes safety without compromising functionality in your vacuum systems.
