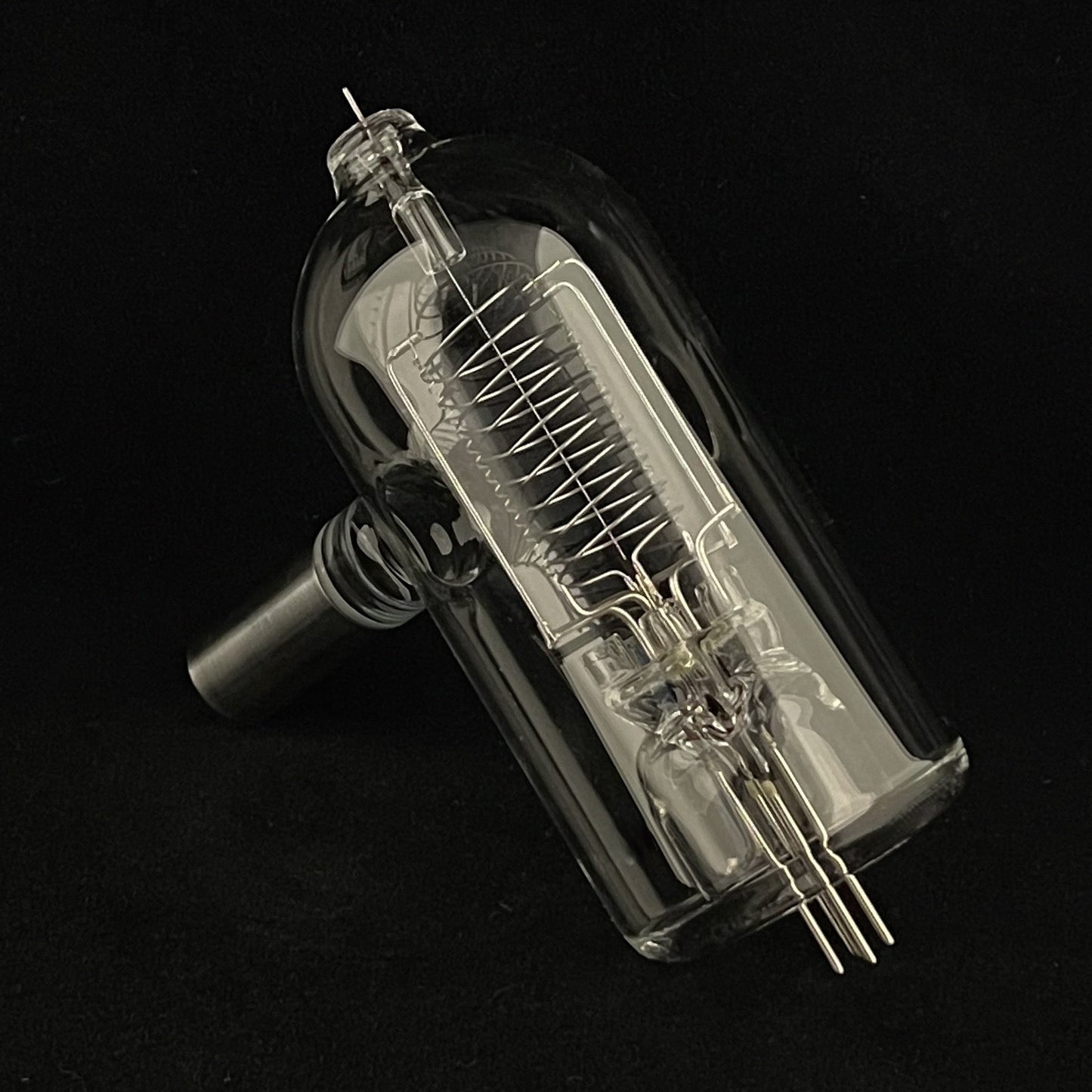

Drop-In Replacements Vacuum Gauges for MKS - Granville-Phillips Part Number: 274013

Seamless Drop-In Replacements for MKS - Granville-Phillips Part Number: 274013 Vacuum Gauges

Key Technical Specifications:

• Sensor Type: Bayard-Alpert Hot Cathode
• Measurement Range: 1.0 x 10^-9 to 0.001 Torr
• Fitting Type: Metal(Kovar) inlet port, 0.75 in.
• Filament: Dual Tungsten
• Collector: Tungsten, 0.010 in. diameter
• Accuracy: ±20% (typical)
• Bake Out Temperature: 450°C
• Installation Orientation: Any, Vertical preferred
• Envelope: Borosilicate glass
• Grid: Tungsten
• Sensitivity: 10/Torr
• X-ray Limit: 3 x 10^-10 Torr (approximate)
• Electron Bombardment Degas: 100 Watts maximum
• Resistance Heated Degas: 6.3 to 7.5 VAC at 10 Amps (l2R)
• Filament Voltage Potential: +30 VDC
• Collector Potential: 0 V
• Grid Potential: +180 VDC
• Filament Heating Current: 4 - 6 Amps
• Filament Heating Voltage: 3 - 5 V

Upgrade your technology confidently with our Vacuum Gauge featuring borosilicate glass construction, 0.75 in. Metal(Kovar) Inlet Port, and Dual Tungsten filaments. Ensure durability and reliability for precision in various vacuum applications.
