Drop-In Replacements Vacuum Gauges for MKS - Granville-Phillips Part Number: 274012

Seamless Drop-In Replacements for MKS - Granville-Phillips Part Number: 274012 Vacuum Gauges

Key Technical Specifications:

• Sensor Type: Bayard-Alpert Hot Cathode
• Measurement Range: 1.0 x 10^-9 to 0.001 Torr
• Fitting Type: Borosilicate Glass Inlet Port, 0.75 in.
• Filament: Dual Tungsten
• Collector: Tungsten, 0.010 in. diameter
• Accuracy: ±20% (typical)
• Bake Out Temperature: 450°C
• Installation Orientation: Any, Vertical preferred
• Envelope: Borosilicate glass
• Grid: Tungsten
• Sensitivity: 10/Torr
• X-ray Limit: 3 x 10^-10 Torr (approximate)
• Electron Bombardment Degas: 100 Watts maximum
• Resistance Heated Degas: 6.3 to 7.5 VAC at 10 Amps (l2R)
• Filament Voltage Potential: +30 VDC
• Collector Potential: 0 V
• Grid Potential: +180 VDC
• Filament Heating Current: 4 - 6 Amps
• Filament Heating Voltage: 3 - 5 V

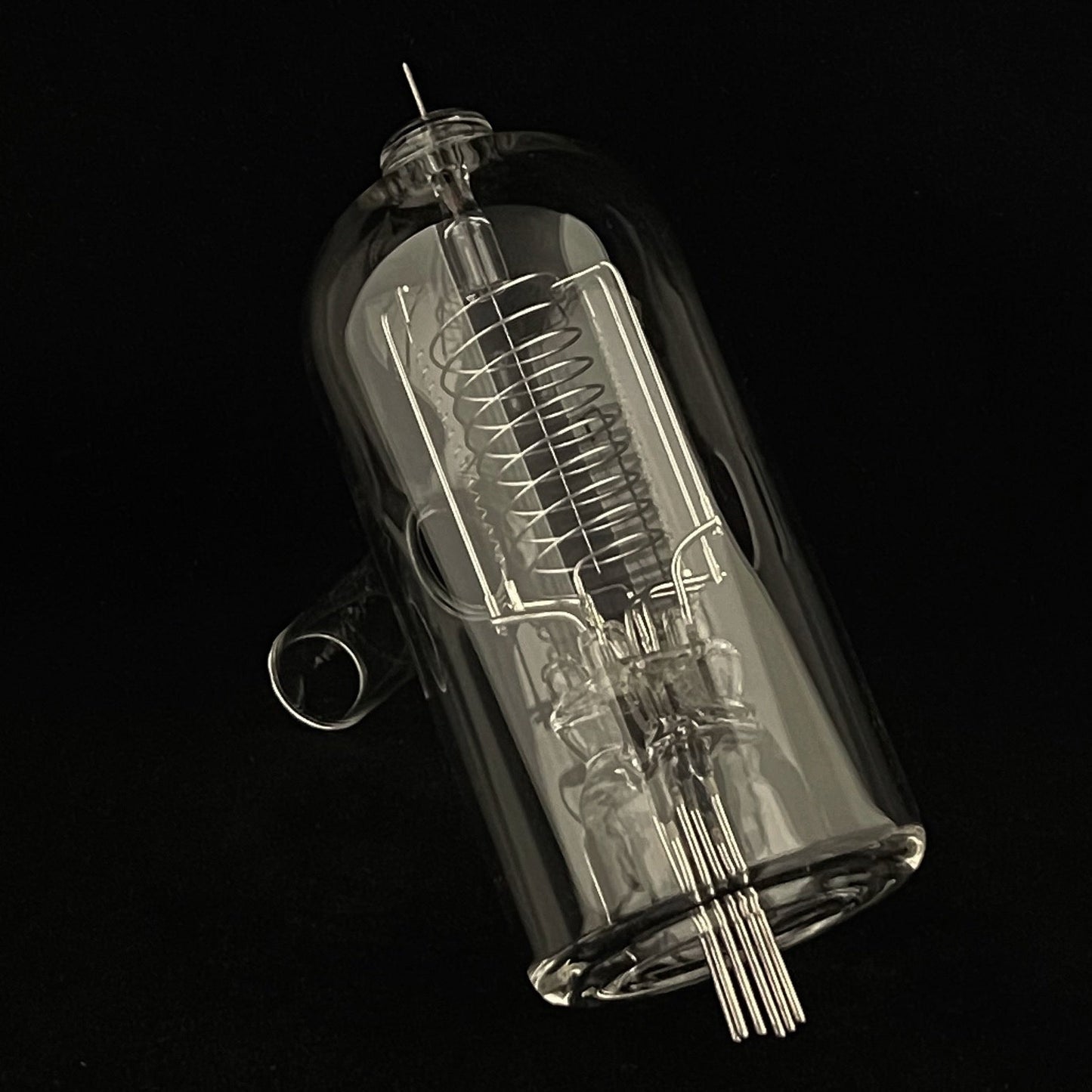

Upgrade your technology confidently with our Vacuum Gauge featuring borosilicate glass construction, 0.75 in. Glass Inlet Port, and Dual Tungsten filaments. Ensure durability and reliability for precision in various vacuum applications.
